Selinsgrove Middle School Auditorium

Selinsgrove Middle School Auditorium – Selinsgrove, PA

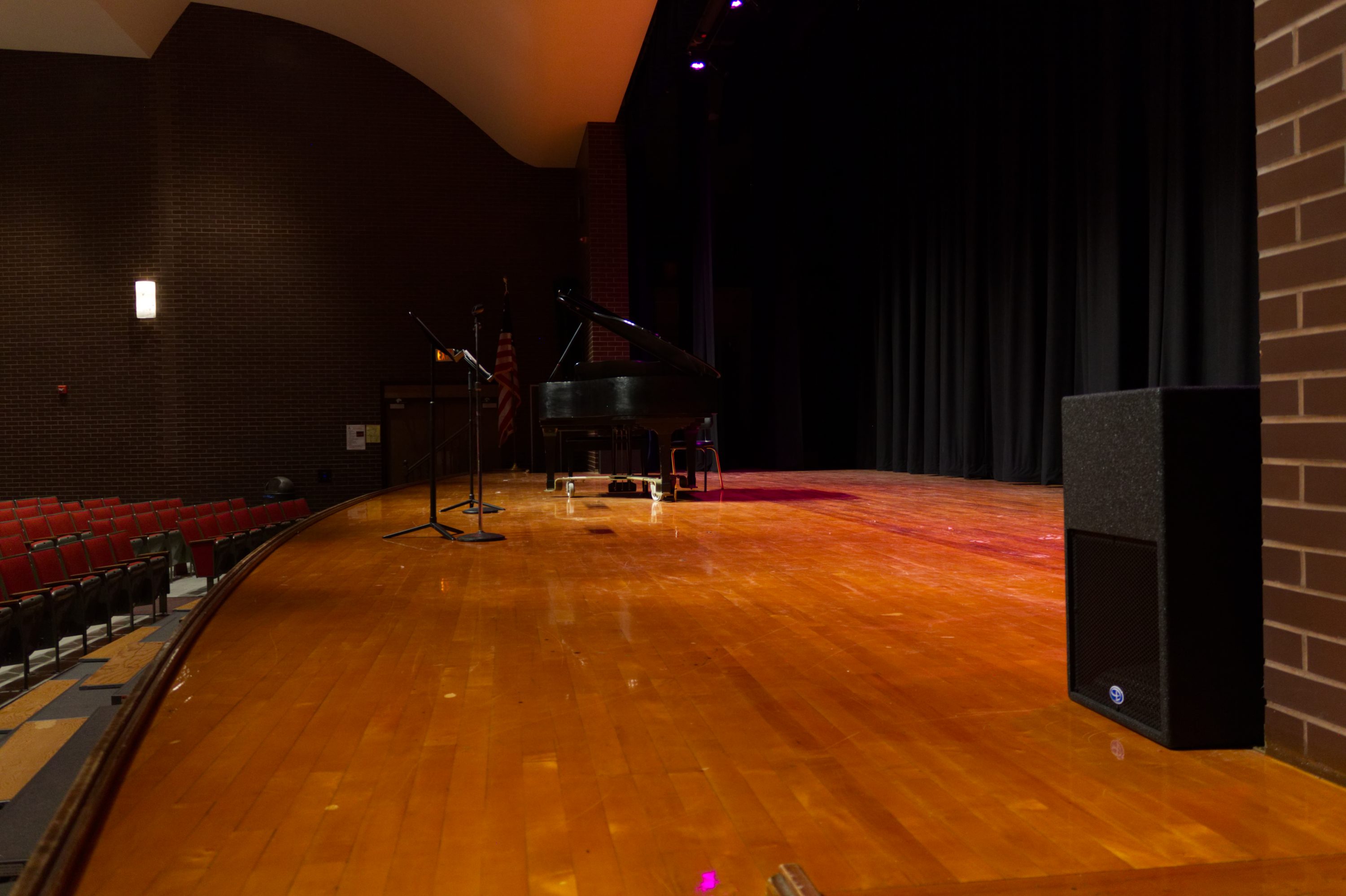

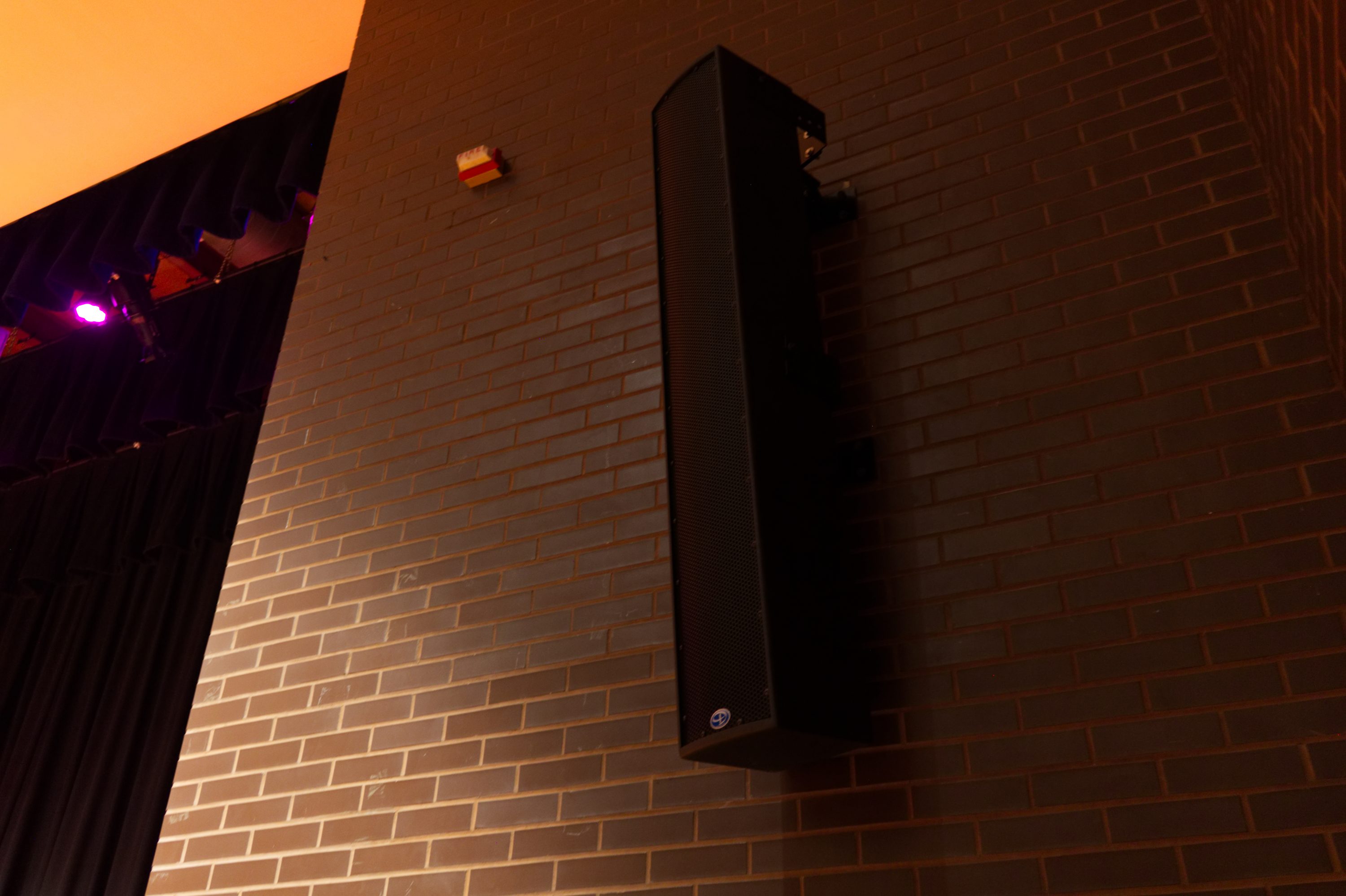

Illuminated Integration worked to deliver a full audio, video, lighting, rigging, and curtain overhaul to the Selinsgrove Middle School auditorium.  For audio, Illuminated designed the system to minimize vertical coverage onto the back wall of the auditorium to prevent excess reverberation.  To accomplish this, two Danley Sound Labs SBH10‘s were installed to provide wide stereo coverage and narrow vertical coverage.  For low-end reinforcement, two Danley THmini subwoofers were installed.  A new Allen & Heath SQ-7 digital audio mixer was installed. Shure QLX-D microphones were installed for their advanced frequency coordination and remote microphone management app accessible when placed on the network.

For video, a center mounted Vivitek DU8190Z projector was installed and is projecting onto a 275 inch diagonal 16:9 tensioned screen.  Atlona’s SW-5000ED HDBaseT wall jacks allow the users of the system to plug in computers and other presentation devices. The QSC Q-SYS Core 110f processor controls the video switcher, simple audio system, projector, and simple lighting presets.  A Q-SYS touch screen controller delivers a fully customized display for all AVL controls.

Illuminated installed both architectural and theatrical auditorium lighting design.  ETC’s Pro Four-Cell fixtures are utilized over the house for their ArcMesh wireless control technology enabling wireless DMX.  This saved labor cost yet still provided smooth dimming and individual intensity control over each fixture.  ETC ArcLamps were installed in new wall sconces for LED dimming capabilities and performance.

Theatrical auditorium lighting is provided by ETC ColorSource Spot and Par fixtures.  Net3 Gateways provide data distribution throughout the auditorium.  ETC’s Ion Xe console brings powerful performance with a minimal footprint to the space.  Architectural lighting is controlled by Paradigm and Inspire button stations.  Power is delivered to the lighting system and all AV circuits by a Sensor IQ 48 intelligent breaker panel.  This panel allows for system on/off sequencing.  Custom ETC distribution strips bring power to all of the over stage lighting positions.

Illuminated Integration removed the outdated and unsafe counterweight lineset system and replaced it with static rigging positions.  Illuminated also removed and replaced all of the aged curtains with new Rose Brand Encore custom curtains.

    Tell Us About Your Project!

    Fill out this quick form to get in touch with our team

    Our Happy Clients

    What they say about us

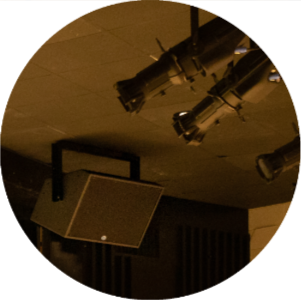

    "I am the Technical Director at Saint John Vianney High School in Holmdel, NJ. Illuminated did a complete overhaul of our audio system; replacing the speakers, sound board, infrastructure, 20 wireless body mics and receivers, and adding some plug and play XLR ports to the front of the stage which work off touchscreens in various places in the room. Everything works seamlessly and their tech support is top notch. They are always willing to help even at weird times (which is especially helpful if something goes wrong during or near showtime!)."
    Chris Scoles St. John Vianney High School - Theatre Audio System
    "We’re really pleased with your recommendations and install.  You’ve been a real blessing to the Faith Family in Hazleton!"
    Jim Paisley Faith - Hazleton, PA

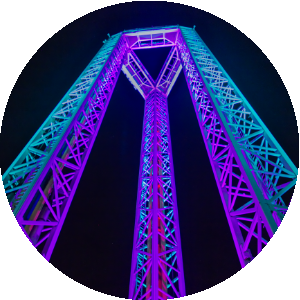

    "At Dorney Park we have a 200’ tall attraction that had an antiquated lighting system. It was inefficient, and static color changes would consume a large amount of time from our team. Illuminated Integration proposed a solution utilizing technology from SGM Lighting for our attraction. The tower is not only much brighter than before, but now it is the most visually stunning element in our skyline! The solution is easier to maintain, less expensive to operate and easier to manage color changes. I would definitely recommend considering Illuminated Integration and SGM Lighting for future projects."

    Michael Fehnel Dorney Park - Dominator

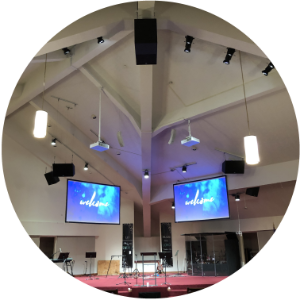

    "Illuminated Integration did an awesome job of upgrading our Live Stream.  We went from SD to 1080. They were great to work with!"
    Josh Gill Doylestown Presbyterian Church - Sanctuary Video System

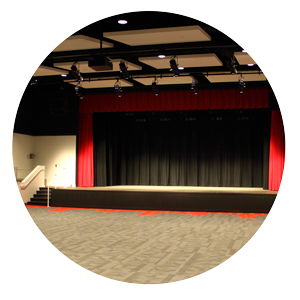

    "Tyler and Mike from Illuminated did a superlative job with our Frederico Theater. They started the project soon after signing the contract, they met every deadline, they had no change orders, they communicated clearly and often and their training sessions were superb. We could not have asked for a better partner for Holy Ghost Prep's Frederico Theater."
